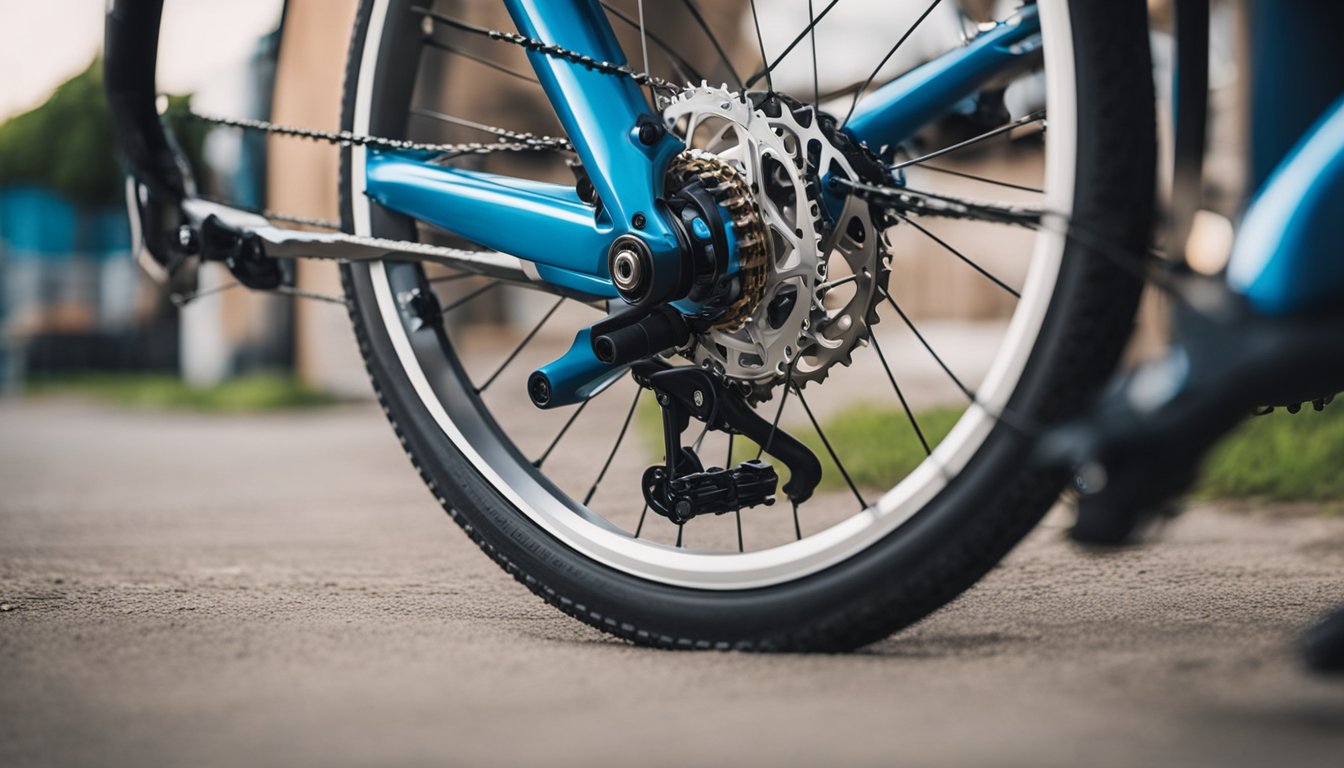

How to Remove Electric Bike Rear Wheel (Step-by-Step Guide)

Ready to swap out the rear wheel on your electric bike? Cool, because it's not as tricky as it might seem. We're rolling out a step-by-step guide that'll have you breezing through the process like it's no big deal. Whether you're gearing up for a tire change, doing a bit of upkeep, or just need to tuck your bike away, you'll be set in no time at all.

So, gather up those tools, and let’s get this wheel show on the road. We're all about keeping it real and easy to follow—no techy mumbo-jumbo here. Excited to level up your DIY skills and earn some street cred? By the time we're done, you'll be sharing tips of your own. Let's get started and tackle that wheel removal with some good old-fashioned elbow grease and a splash of fun!

Safety Precautions and Preparatory Steps

Before removing the rear wheel of your electric bike, it is important to take certain safety precautions and preparatory steps to avoid any potential hazards. In this section, we will cover the necessary steps to turn off the power, remove the battery, and secure the bike.

Turning Off the Power

The first step in removing the rear wheel of your electric bike is to turn off the power. This will prevent any accidental activation of the motor or throttle while you are working on the bike. To turn off the power, simply press the power button on your bike's control panel until the display turns off.

Removing the Battery

Once the power is turned off, the next step is to remove the battery. Removing the battery will eliminate any electrical hazards and make the bike lighter and easier to work with. To remove the battery, locate the release button or lever on the battery mount and press or pull it to release the battery. Then, carefully lift the battery out of the mount and set it aside in a safe location.

Securing the Bike

Before removing the rear wheel, make sure to secure the bike to prevent it from falling over or moving around. One way to do this is to lay down a mat or cloth to protect the bike and turn it upside down, resting it on its handlebars and seat. This will give you easy access to the wheel and keep the bike stable. Alternatively, you can use a bike stand or workbench to hold the bike in place.

Tools and Materials Needed

Selecting the Right Tools

When it comes to removing the rear wheel of your electric bike, having the right tools is crucial. Here are the tools you will need:

Wrench: You will need a wrench to loosen the bolts or quick-release mechanism that holds the wheel in place.
Lever: You will need a lever to push the rear derailleur forward and slacken the chain.
Cloth: You will need a cloth or mat to protect your bike and prevent any scratches or damage during the process.

Make sure you have the appropriate size wrench for the bolts on your bike. You can check the size of the bolts by referring to the user manual or by measuring them with a caliper.

Organizing Your Workspace

Before you start removing the rear wheel, it's important to organize your workspace. Here are some tips to help you get started:

Find a clean and flat surface to work on.
Lay down a cloth or mat to protect your bike.
Gather all the tools and materials you will need.
Make sure you have enough space to move around and work comfortably.

By organizing your workspace, you'll be able to work more efficiently and reduce the risk of losing any small parts or tools.

Removing the Rear Wheel

Removing the rear wheel of an electric bike may seem like a daunting task, but with the right tools and steps, it can be done easily and efficiently. In this section, we will guide you through the process of removing the rear wheel of your electric bike.

Detaching the Rear Derailleur

Before removing the rear wheel, you need to detach the rear derailleur. Locate the two bolts that hold the derailleur onto the frame and remove them. Once the bolts are removed, you can move the derailleur out of the way. This will give you more space to work with when removing the wheel.

Releasing the Brake Mechanism

Next, you need to release the brake mechanism. This will allow you to remove the wheel without any resistance. If you have rim brakes, you can simply release the brake by squeezing the brake pads together and releasing the cable. If you have disc brakes, you need to use a brake pad spacer to prevent the pads from closing in on the rotor.

Unscrewing the Axle Nuts or Quick-Release Lever

Now it's time to remove the wheel. If your bike has nuts, use a wrench to unscrew them. If your bike has a quick-release lever, flip it open and unscrew it. Once the nuts or lever are removed, you can slide the wheel out of the dropouts.

It's important to note that some electric bikes have a motor mounted on the rear wheel, which can make the wheel heavier and more difficult to remove. In this case, you may need an extra set of hands to help you lift the wheel out of the dropouts.

Handling the Chain and Motor Cable

When removing the rear wheel of your electric bike, you need to handle the chain and motor cable properly to avoid any damage. In this section, we will discuss how to disconnect the motor cable and manage the chain tension.

Disconnecting the Motor Cable

Before removing the rear wheel, you need to disconnect the motor cable. The motor cable is usually located near the rear wheel and connects the motor to the battery. To disconnect the motor cable, follow these steps:

Locate the motor cable: The motor cable is usually a thick cable that runs from the motor to the battery. It is often zip-tied to the frame to keep it in place.
Disconnect the cable: Use your fingers to pull the connector ends apart without twisting. If the connector is tight, you can use pliers to pull it apart gently.

By disconnecting the motor cable, you can avoid any damage to the motor or the battery while removing the rear wheel.

Managing the Chain Tension

To remove the rear wheel, you need to manage the chain tension properly. If the chain is too tight, it can be difficult to remove the wheel. If the chain is too loose, it can fall off the cogset and get tangled.

To manage the chain tension, follow these steps:

Shift to the smallest cog: Shift the rear derailleur to the smallest cog to slacken the chain.
Remove the chain from the cogset: Guide the chain off the cogset as you gently lift the wheel out of the frame. Make sure not to misplace any spacers or washers that may come loose in the process.
Remove the wheel: With the chain clear, lift the wheel vertically to remove it from the dropouts.

By managing the chain tension properly, you can avoid any damage to the chain or derailleur while removing the rear wheel.

Reinstalling the Wheel and Post-Maintenance Checks

After successfully removing the rear wheel of your electric bike, you need to reinstall it. This step is crucial to ensure your bike is safe and ready for riding. Follow the steps below to attach the wheel back onto the bike:

Attaching the Wheel Back onto the Bike

Insert the axle into the dropouts of the frame, making sure it is aligned correctly.
Tighten the axle nuts, ensuring the wheel is centered in the frame.
Check the chain tension and adjust it if necessary. Make sure the chain is correctly seated on the rear cassette.
Spin the wheel and check that it is running smoothly.

Reconnecting the Motor Cable and Chain

Reconnect the motor cable by aligning the connector ends and pushing them together without twisting.
Secure the connector in place using a zip tie.
Check that the chain is correctly seated on the chainring.

Testing the Wheel and Brakes

Check that the brakes are working correctly by squeezing the brake levers and ensuring the brake pads are making contact with the rim.
Spin the wheel and check that the brakes are not rubbing against the rim.
Check that the wheel is securely fastened by trying to wiggle it side-to-side and up-and-down.
Take a short test ride to ensure the wheel is running smoothly and the brakes are working correctly.

Conclusion

As you've successfully navigated through each step of removing the rear wheel of your electric bike, you can now appreciate the satisfaction of a job well done. With this newfound knowledge, you're not just maintaining your e-bike; you're also taking control of your ride's longevity and performance. Keep this guide handy for future reference, and remember that practice makes perfect.

If this experience has sparked your interest in the wider world of e-bikes, or you're already thinking about your next ride, don't miss out on exploring the diverse selection we offer. Be sure to check out our e-bikes collection here at iSinwheel, where you can find the latest models that blend style, efficiency, and technology. Whether you're after an upgrade or a new addition, we've got the e-bike to match your adventure. Happy cycling!

Frequently Asked Questions

How to remove rear tire from electric bike?

To remove the rear tire from your electric bike, you will need to first shift the chain onto the smallest cog on the rear wheel. Then, release the brake and loosen the nuts or quick release lever that hold the wheel in place. Gently pull the wheel out of the dropouts and remove it from the bike. If you encounter any difficulties, refer to your bike's manual or seek assistance from a professional.

How to take off a rear bike wheel?

To take off the rear wheel of your bike, first shift the chain onto the smallest cog on the rear wheel. Then, release the brake and loosen the nuts or quick release lever that hold the wheel in place. Gently pull the wheel out of the dropouts and remove it from the bike. If you encounter any difficulties, refer to your bike's manual or seek assistance from a professional.

How to remove an e-scooter rear wheel?

To remove the rear wheel of your e-scooter, first, locate the bolts that hold the wheel in place. Use the appropriate tools to loosen and remove the bolts. Gently pull the wheel out of the dropouts and remove it from the scooter. If you encounter any difficulties, refer to your e-scooter's manual or seek assistance from a professional.

How do you remove a stuck quick-release bike wheel?

If your bike's quick-release wheel is stuck, first, try to release the lever while applying pressure to the wheel. If this does not work, use a lubricant such as WD-40 to loosen the mechanism. If the wheel is still stuck, seek assistance from a professional. Do not force the wheel to avoid damaging your bike.
